Pressure boosting pump Multi-stage Cre 15-1 [4925693]

€2.689,00 EUR

Brand: Grundfos
Product number: 4925693
Delivery time: approx. 5-10 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

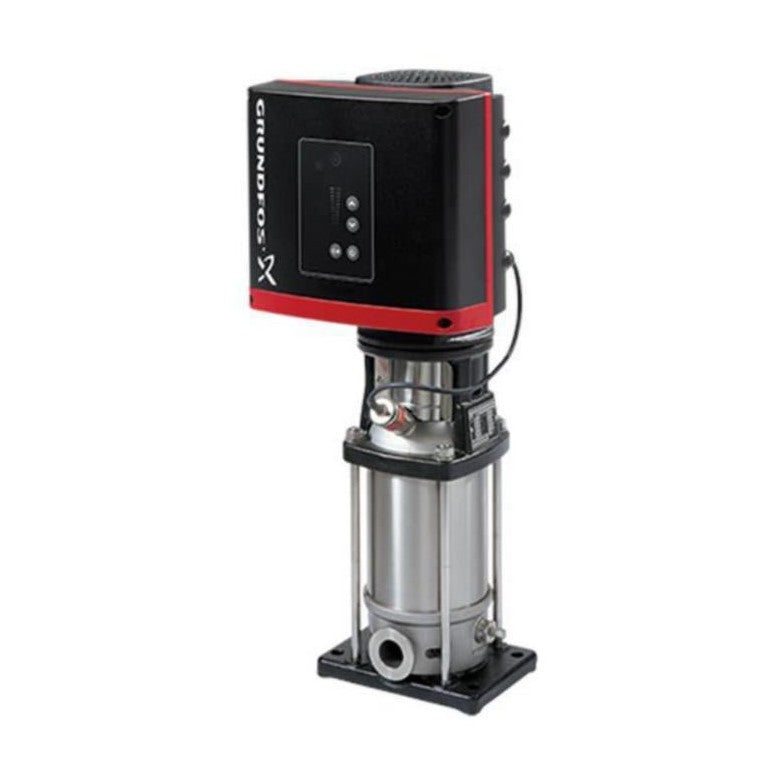

The Grundfos CRE series is a vertical, multi-stage centrifugal pump with integrated frequency converter, with suction and discharge ports at the same level. The pump head and base are made of cast iron. Other wetted parts are made of stainless steel (EN 1.4301). The versatile CR series is suitable for pressure boosting applications, for example in industry or waterworks and in heat recovery systems in building services.

The pump motor has digital and analog inputs and outputs, as well as a connection to a bus card. For example, you can adjust the speed of the mixing pump by feeding a temperature measurement directly to the pump, or maintain a constant pressure by feeding the pump pressure data. You can order the CRE pump in a version where the pressure sensor is already connected to the pump at the factory. E-pumps also have additional features such as PLC logic. For example, you can limit the flow produced by the pump using an external flow meter and the FLOWLIMIT function.

CRE pumps are typically used in applications such as heat recovery, pressure boosting and all applications where high head is required.

E-motors are available for all models under 22 kilowatts.

Product number

4925693
Supplier product number:

98390713
EAN code:

5711494201563
Material class

P4760B

Specifications

Pump type: 15-1
Weight: 46 kg
Insulation class according to IEC: F
Motor with extended shaft: no
Motor speed control: built-in
Rated current: 2.82 A
Self-priming: no
Motor control type: stepless
Rotational speed: 3501 rpm
Insertion length: 30 mm
Pump height: 200 mm
Protection class (IP): IP55
Frequency: 50/60 Hz
Pump shell material: cast iron
Impeller material quality: stainless steel 304 (1.4301)
Flange shape: oval
Impeller material: stainless steel
Inlet connection: cylindrical internal pipe thread
Outlet connection: cylindrical internal pipe thread
Nominal diameter of the outlet side: 2" (50)
Input standard: ISO 228-1
Output side standard: ISO 228-1
Number of stages: 3
Motor power (P2): 1.5 kW
Electrical connection: connectors
Explosion-proof: no
Interface PT100 / PT1000 / PTC: yes
Interface PWM (Pulse Width Modulation): no
Pulse counter interface: no
Interface signal 0-10 V / 2-10 V: yes
Interface signal 0-20 mA / 4-20 mA: yes
Communication: built-in and pre-installed
Pump housing material quality: cast iron EN-GJL-200 (GG 20)
Maximum operating pressure: 10 bar
Maximum static height: 19.6 m
RS-232 interface: no
RS-485 interface: yes
With dry-running protection: no
Minimum Efficiency Index (MEI): 0.7
Model / Type: vertical
Motor energy efficiency class: IE5
Volume flow (BEP): 20.5 m³/h
Standard engine: yes
Potential-free main switch: yes
Radio standard 5G: no
WLAN 802.11 standard: no
Supports BACnet IP protocol: yes
Supports BACnet MS/TP protocol: yes
Supports CAN/CANOpen protocol: no
Supports Ethernet/IP protocol: yes
Supports KNX protocol: no
Supports LIN Bus protocol: no
Supports LON/LONworks protocol: yes
Supports Modbus RTU protocol: yes
Supports Modbus TCP protocol: yes
Supports PROFINET IO protocol: no
Pressure at volumetric flow (BEP): 142.16 kPa
Inlet flange pressure class: PN 10
Outlet flange pressure class: PN 10
Radio standard 2G: no
Radio standard 3G: no
Radio standard 4G: no
Bluetooth standard: no
Supports PROFIBUS protocol: yes
