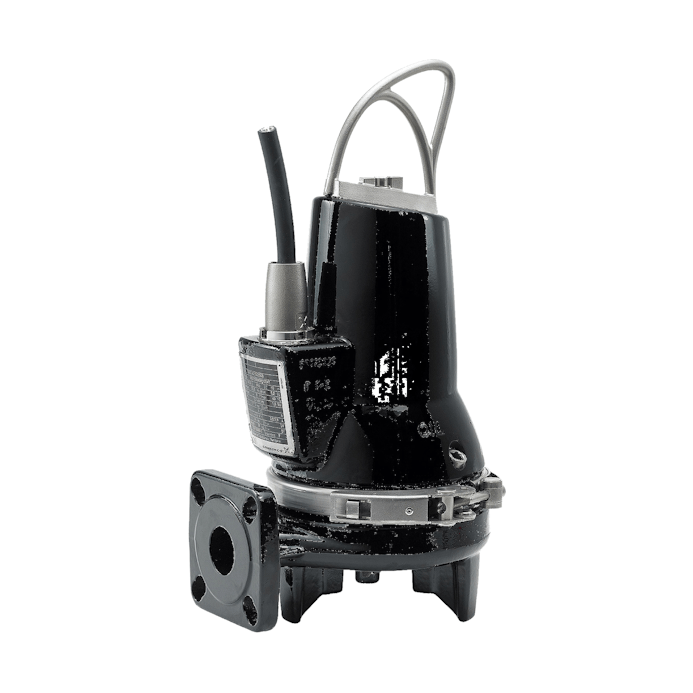

Wastewater pump SEG.40.09.2.50B 0.9 KW with impeller [4836101]

€1.569,00 EUR

Brand: Grundfos
Product number: LVI- 4836101
Delivery time: approx. 5-10 business days.
Shipping €9.90
Free pickup, no hidden costs.

More information:

The Grundfos SEG shredder pump pumps untreated domestic wastewater, e.g. into the pressure sewer network. The shredder device of the SEG pump is long-lasting and effectively shreds solids into small pieces to prevent pipe blockages. Grundfos up-fittings are equipped with the reliable SmartSeal sealing system, which keeps the pumping system efficient and reduces operating costs. The SEG series includes models for single- and three-phase current and the pumps can withstand voltage fluctuations of –10% / +6%. The pump power range is 0.9–4.0 kW. The temperature of the pumped liquid can be 0 °C – +40 °C (temporarily max. +60 °C).

Product benefits:
- The pump's cable connection can be easily removed without electrical work.
- The short shaft places little load on the bearings and extends the pump's service life.
- The double mechanical shaft seal is reliable and long-lasting.
- Maintenance procedures do not require special tools, as the pump mounting bracket speeds up the opening and dismantling of the pump.

Product number: 4836101

Supplier product number: 96075897

EAN code: 5700394850698

Material class P4910B

Specifications

Brand: Grundfos
Electrical connection: cabling
Insulation class according to IEC: F
Disconnect device: yes
Rotation speed: 2860
Suitable for dry installation: no
Motor speed control: none
Stand: no
Rated current: 3
Pump diameter: 216
Pump height: 466
Frequency: 50Hz
Static maximum height: 14.4
Weight: 42.1
Output side connection: flange
Nominal diameter of the outlet side: DN 40
Outlet standard: EN 1092-2
Number of stages: 3
Motor power (P2): 0.9
Outlet connection diameter: 40
Explosion-proof: no
Flange shape: square
Motor input power (P1): 1
Protection class (IP): IP68
Cable length: 10
Impeller material: cast iron
Pump shell material: cast iron
Impeller material quality: cast iron GG 20 (GJL-200)
Pump housing material quality: cast iron GG 20 (GJL-200)
Maximum operating pressure: 6
Outflow (maximum): 16
Rated operating mode: S3
Volumetric flow (BEP): 8.3
Pressure at volumetric flow (BEP): 81.67
Outlet flange pressure class: PN 6
