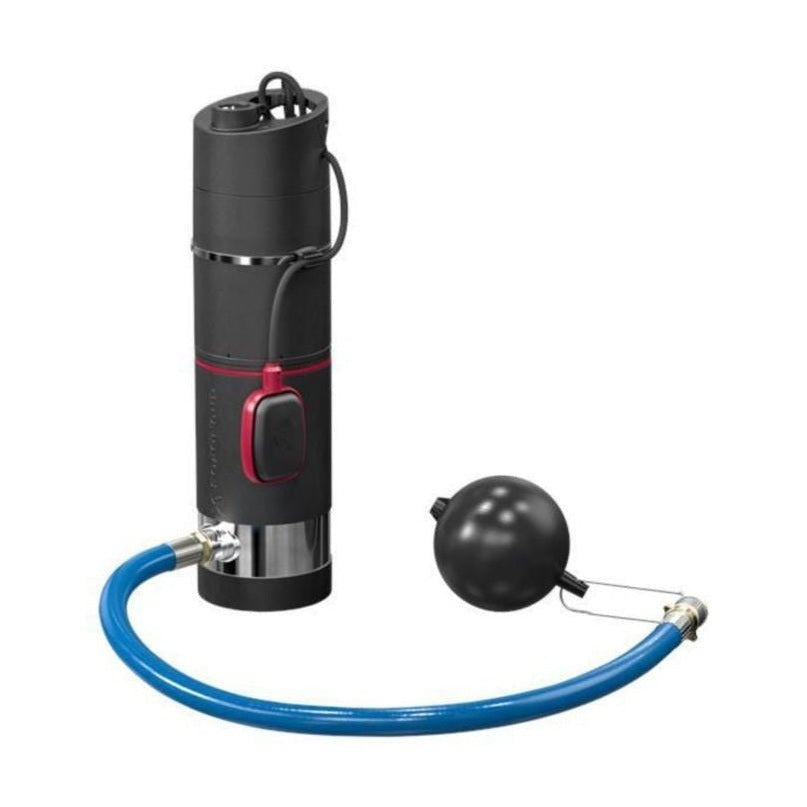

Automatic Water Dispenser Submersible Grundfos Sba 3-45 Aw Clockwise [4822624]

€822,80 EUR

Brand: Grundfos
Product number: 4822624
Delivery time: approx. 1-5 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

Grundfos SBA submersible water pump: The submersible water pump has a built-in automatic system that starts and stops the pump according to use, so a separate pressure switch is not required. SBA pumps are submersible pumps for pumping clean water with a built-in pressure switch. They are particularly suitable for pumping rainwater, irrigation and household wells, as well as lake water intake in homes and summer cottages.

Product benefits:
- Silent operation
- No suction problems, lower risk of freezing
- All in one package: built-in dry-running and thermal protection
- Automatic system starts and stops the pump according to water usage
- High-quality materials: composite and stainless steel

Advantages of a V-shaped pump:
- The pump does not empty the well.
- The pump starts automatically when there is water in the well

Things to consider when dimensioning and using:
- For single-family household use
- Max. 20 starts per hour
- The pump should not be submerged by the electrical cable.
- The pump must not be at an angle of more than 15 degrees from the vertical position.
- Max. height difference 13 m (SBA 3-35) and 20 m (SBA 3-45) between pump and water point
- Not for the bottom or dirty water

Designation key: M = without lever, A = with lever, MW = without lever, with suction hose, AW = with lever, with suction hose

Product number

4822624
Supplier product number:

92713101
EAN code:

5715118529606
Replace product number:

4822548
Material class

P4710B

Specifications

Number of pumps: 1
Width : 160mm
Height : 575mm
Insulation class according to IEC: F
Suitable for tap water: yes
Length: 664
Motor speed control: none
Suction installation: no
Rated current: 4
Volume flow (BEP): 3
Rotation speed: 2800
Suitable for sprinkler/irrigation: yes
Pump shell material: fiber-reinforced plastic
With bypass pipe: no
Pump shell material quality: PP-GF
Inlet connection: cylindrical internal pipe thread
Outlet connection: cylindrical internal pipe thread
Nominal inlet diameter: 1" (25)
Nominal diameter of the outlet side: 1" (25)
Input standard: ISO 228-1
Output side standard: ISO 228-1
Number of stages: 1
Motor power (P2): 0.55
Electrical connection: connection cable with plug
Frequency: 50Hz
Motor input power (P1): 0.9
Interface PT100 / PT1000 / PTC: no
Interface PWM (Pulse Width Modulation): no
Pulse counter interface: no
Interface signal 0-10 V / 2-10 V: no
Interface signal 0-20 mA / 4-20 mA: no
Communication: none
Suitable for rainwater: yes
Cable length: 15
Tank material: other
Impeller material: polypropylene
Tank material quality: other
Impeller material quality: PP-GF
Maximum operating pressure: 6
Outflow (maximum): 6.4
Static maximum height: 45
RS-232 interface: no
RS-485 interface: no
Medium temperature (continuous): 0-40
Rated voltage: 220-240
Operating temperature: -10-50
Potential-free main switch: no
Radio standard 5G: no
WLAN 802.11 standard: no
Supports BACnet IP protocol: no
Supports BACnet MS/TP protocol: no
Supports CAN/CANOpen protocol: no
Supports Ethernet/IP protocol: no
Supports KNX protocol: no
Supports LIN Bus protocol: no
Supports LON/LONworks protocol: no
Supports Modbus RTU protocol: no
Supports Modbus TCP protocol: no
Supports PROFINET IO protocol: no
Pressure at volumetric flow (BEP): 319.61
Radio standard 4G: no
Bluetooth standard: no
Supports PROFIBUS protocol: no
