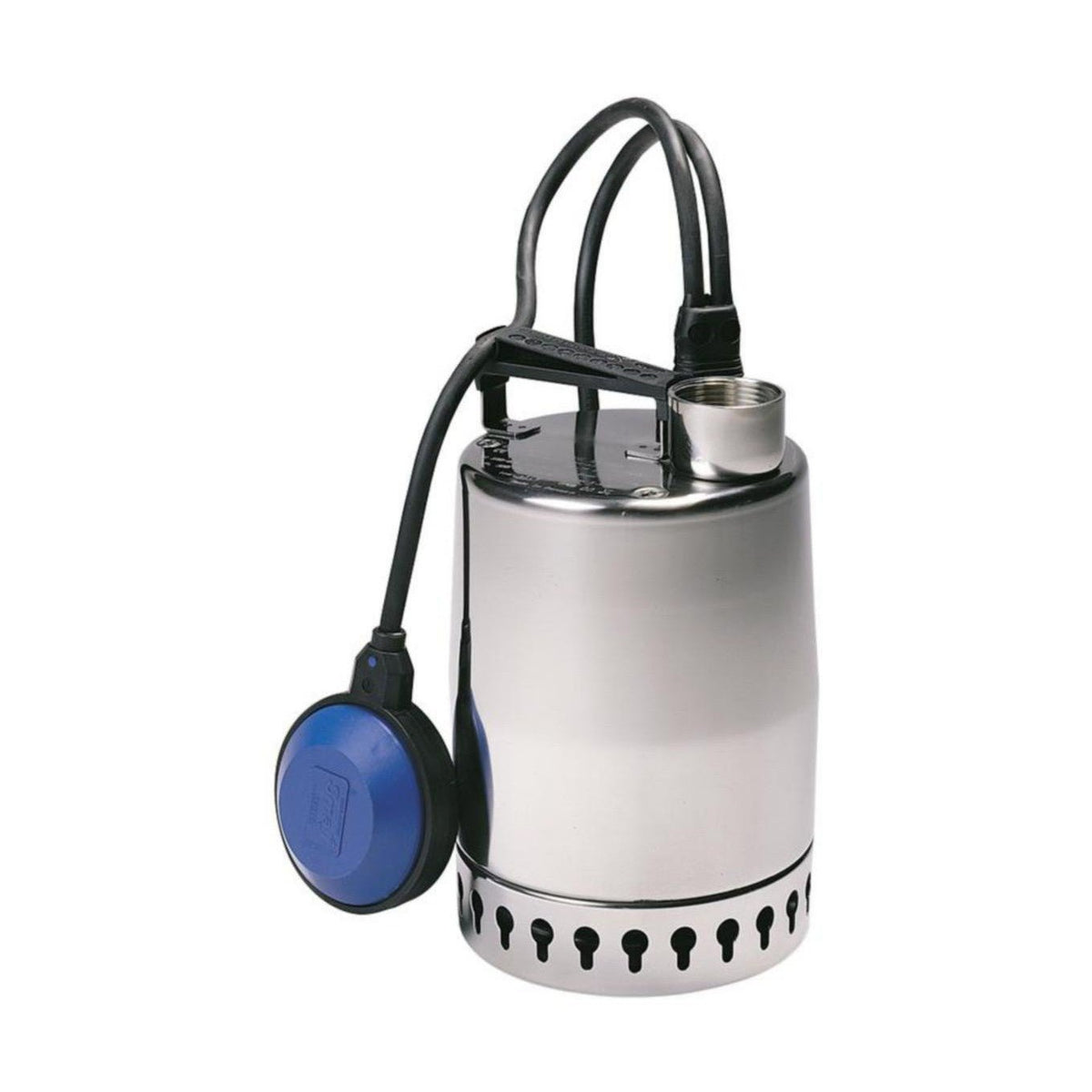

Drain pump Grundfos Unilift KP 250 A 1 [4822507]

€489,90 EUR

Brand: Grundfos
Product number: LVI- 4822507
Delivery time: approx. 1-5 business days.
Shipping €9.90 or
Free pickup, no hidden costs.

More information:

Grundfos Unilift KP pumps are suitable for applications such as pumping rainwater, pumping groundwater infiltration into basements, draining swimming pools and showers, or draining or transferring grey water. The 1-phase motor has a built-in motor protection.

- Liquid temperature: 0 … 50 °C
- Max. penetration: Ø 10 mm
- Maximum lifting height, H: 9 m
- Thanks to the integrated pipe lever, the Unilift KP-AV pump is suitable for wells with a diameter of only 24 cm
- Stainless steel

Designation key: M = without lever, A = with lever, AV = with pipe lever

Product number

4822507
Supplier product number:

012H1800
EAN code:

5700391116612
Material class

P48030

Specifications

Insulation class according to IEC: F
Motor power (P2): 0.25
Motor input power (P1): 0.48
Rated current: 2.3
Pump height: 214
Pumping circuit: none
Rotational speed: 2692
Maximum diameter of mounting parts: 10
Electrical connection: connection cable with plug
Weight: 6.9
Pump diameter: 148
Protection class (IP): IP68
Pump shell material: stainless steel
Motor shell material: stainless steel
Motor housing material quality: stainless steel 316 (1.4401)
Pump housing material quality: stainless steel 304 (1.4301)
Static maximum height: 7.5
Number of stages: 1
Impeller material: stainless steel
Impeller material quality: stainless steel 304 (1.4301)
Outflow (maximum): 11.2
Rated operating mode: S3
Frequency: 50Hz
Immersion depth: 7
Pressure at volumetric flow (BEP): 50.2
Motor speed control: none
Output side standard: ISO 7-1 / EN 10226-1
Nominal diameter of the outlet side: 1.1/4" (32)
Outlet connection: cylindrical female thread BSPT-Rp (ISO 7-1 / EN 10226-1)
Disconnect device: no
Suitable for dry installation: yes
Explosion-proof: no
Cable length: 10
With dry-running protection: yes
Volumetric flow (BEP): 5.81
