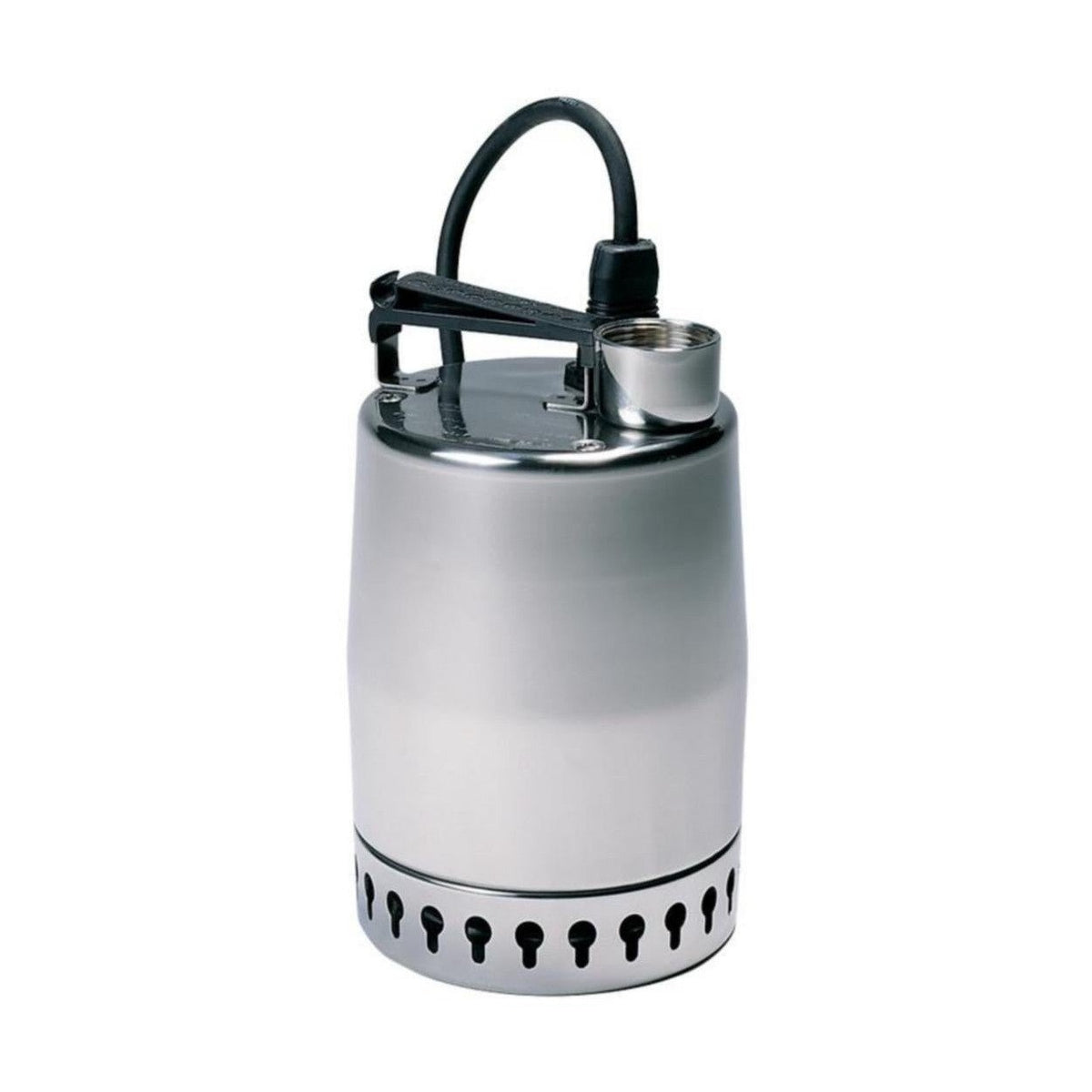

Submersible pump Grundfos Kp 150-M Rst [4822501]

€398,80 EUR

Brand: Grundfos
Product number: 4822501
Delivery time: approx. 1-5 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

Grundfos Unilift KP pumps are suitable for applications such as pumping rainwater, pumping groundwater infiltration into basements, draining swimming pools and showers, or draining or transferring grey water. The 1-phase motor has a built-in motor protection.

- Liquid temperature: 0 … 50 °C
- Max. penetration: Ø 10 mm
- Maximum lifting height, H: 9 m
- Thanks to the integrated pipe lever, the Unilift KP-AV pump is suitable for wells with a diameter of only 24 cm
- Stainless steel

Designation key: M = without lever, A = with lever, AV = with pipe lever

Product number

4822501
Supplier product number:

011H1300
EAN code:

5700391115400
Material class

P48030

Specifications

Insulation class according to IEC: F
Motor power (P2): 0.15
Motor input power (P1): 0.3
Rated current: 1.3
Pump height: 214
Pumping circuit: none
Rotation speed: 2667
Maximum diameter of mounting parts: 10
Electrical connection: connection cable with plug
Weight: 5.9
Pump diameter: 148
Protection class (IP): IP68
Pump shell material: stainless steel
Motor shell material: stainless steel
Motor housing material quality: stainless steel 316 (1.4401)
Pump housing material quality: stainless steel 304 (1.4301)
Static maximum height: 5.5
Number of stages: 1
Impeller material: stainless steel
Impeller material quality: stainless steel 304 (1.4301)
Outflow (maximum): 8.5
Rated operating mode: S3
Frequency: 50Hz
Immersion depth: 7
Pressure at volumetric flow (BEP): 28.82
Motor speed control: none
Output side standard: ISO 7-1 / EN 10226-1
Nominal diameter of the outlet side: 1.1/4" (32)
Outlet connection: cylindrical female thread BSPT-Rp (ISO 7-1 / EN 10226-1)
Disconnect device: no
Suitable for dry installation: yes
Explosion-proof: no
Cable length: 10
With dry-running protection: yes
Volumetric flow (BEP): 5.47
