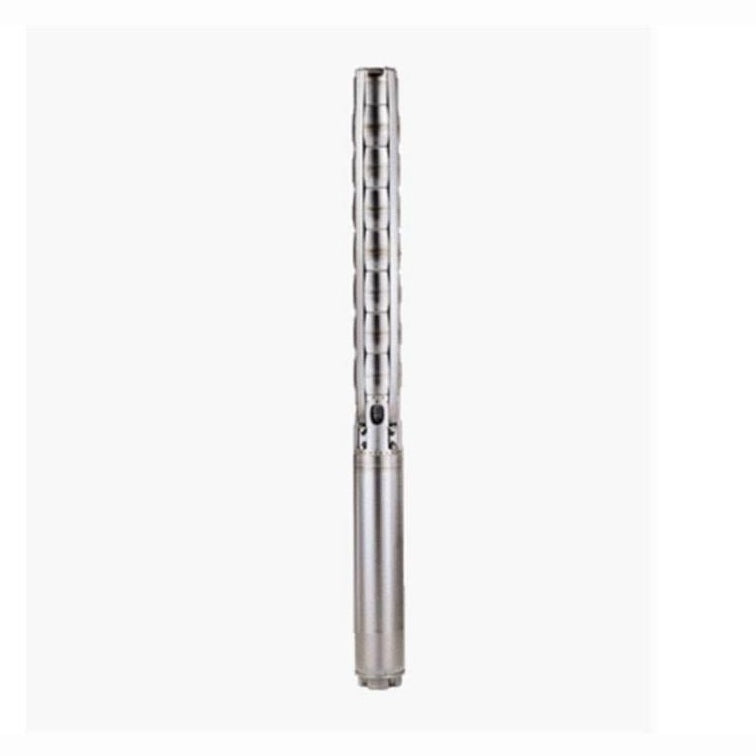

Borehole pump Sp 30-3 [4762732]

€2.849,00 EUR

Brand: Grundfos
Product number: 4762732
Delivery time: approx. 5-10 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

Grundfos SP borehole pumps are used all over the world, for example in farm irrigation systems and municipal water abstraction, but SP is also suitable for many other applications and special cases. A complete SP system includes an SP pump section, MS/MMS motor, motor protection, frequency converter and remote monitoring.

Product benefits:
- Reliable – 100% stainless steel exterior and interior, excellent resistance to sandy water
- High efficiency – superior pump hydraulics and a motor designed for the SP pump ensure the best efficiency
- Low life cycle costs – an energy-efficient and easy-to-maintain pump keeps costs low throughout the product's life cycle
- Perfect motor – MS motor and rewindable MMS motor are designed specifically for the SP pump – ensuring perfect fit and best efficiency
- Wide range – available in 4, 6, 8, 10 and 12 inch sizes, the range has a max. flow rate of 470 m³/h and a maximum lift height of up to 670 m

Product number

4762732
Supplier product number:

13A01903
EAN code:

5700391137709
Material class

P4701B

Specifications

Function: SP 30-3
Frequency: 50Hz
Motor power (P2): 3 kW
Protection class (IP): IP68
Insulation class according to IEC: F
Rated current: 7.7 A
Pump and motor length: 1047 mm
Pump diameter: 134 mm
Electrical connection: plug
Cable length: 1.7 m
Static maximum height: 35.8 m
Weight: 28 kg
Rotational speed: 2900 rpm
Impeller material: stainless steel
Non-return valve: yes
Impeller material quality: stainless steel 304 (1.4301)
Outlet connection: cylindrical internal pipe thread
Nominal diameter of the outlet side: 3" (80)
Number of stages: 3
Pump shell material: stainless steel
Pump housing material quality: stainless steel 304 (1.4301)
Maximum operating pressure: 60 bar
Outlet flow (maximum): 39 m³/h
Maximum sand content: 100 g/m³
Minimum drill hole diameter: 140 mm
Rated operating mode: S1
Volume flow (BEP): 30 m³/h
Pressure at volumetric flow (BEP): 215.69 kPa
Motor speed control: none
