Borehole pump package Sqe 2-85 + 60 M + Cu301 [4762617]

€2.565,00 EUR

Brand: Grundfos
Product number: 4762617
Delivery time: approx. 5-10 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

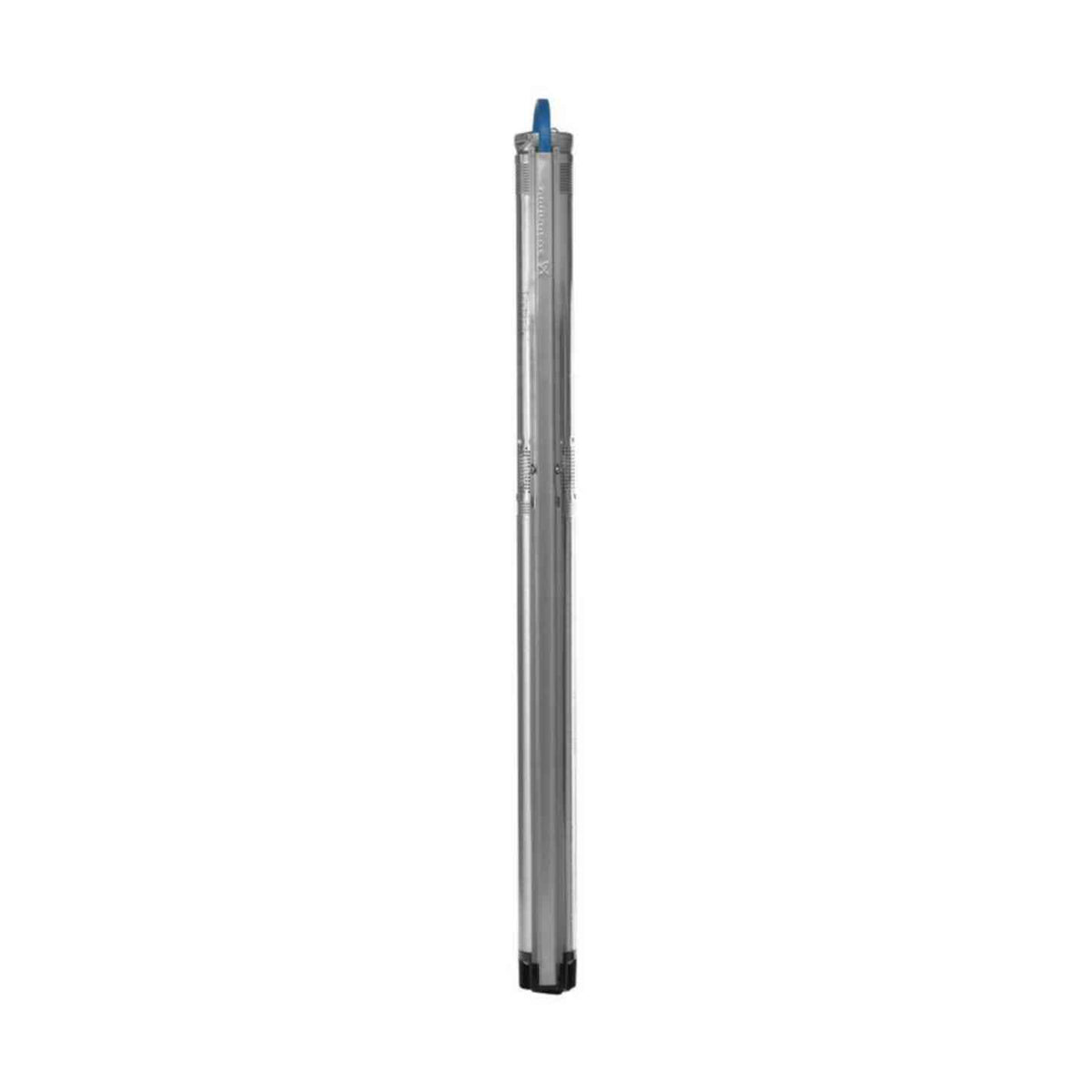

Grundfos' small (diameter 74 mm) SQE borehole pumps are designed specifically for domestic and holiday home water supply and irrigation systems.

The SQE pump is also suitable for open pits and can also be installed horizontally.

The SQE pump has integrated automation that allows the pump to be used in constant pressure applications, but the pump can also be used on an on/off basis if necessary.

SQE pumps are equipped with dry-running protection/soft start and a non-return valve. Dry-running protection does not protect against continuous dry running. SQE pumps do not require a capacitor or motor thermal protection.

SQE pumps can also be used with a generator or a sine wave inverter. Their power must be at least 10% more than the maximum power requirement of the pump used. The SQE can easily be upgraded to a constant pressure solution by choosing a constant pressure package in addition to the pump, either the basic Basic model or the more extensive Premium. Without a constant pressure package, the SQE operates on the on/off principle.

Product benefits:

- Small – the SQE has a diameter of only 74 mm / 3", so it fits well even in old wells narrowed by sediment accumulation

- Constant pressure – thanks to speed control, SQE models are suitable for constant pressure systems – in a constant pressure system, water comes at the same pressure all the time, even if several water points are opened at the same time

- Versatile – suitable for most new and old boreholes, max. lift height up to 200 m

- Energy efficient – high efficiency of the pump and motor ensures low electricity consumption

- Fully serviceable – all parts of the SQE pump are serviceable

Product number

4762617
Supplier product number:

96524506
EAN code:

5700396932705
Material class

P4701B

Specifications

Function: SQE 2-85
Frequency: 50/60 Hz
Motor power (P2): 1.15 kW
Protection class (IP): IP68
Insulation class according to IEC: F
Rated current: 8.4 A
Pump and motor length: 825 mm
Pump diameter: 74 mm
Electrical connection: cabling
Cable length: 60 m
Maximum static height: 88 m
Weight: 18.7 kg
Rotational speed: 10700 rpm
Impeller material: other
Non-return valve: yes
Impeller material quality: other
Outlet connection: cylindrical internal pipe thread
Nominal diameter of the outlet side: 1.1/4" (32)
Number of stages: 1
Pump shell material: stainless steel
Pump housing material quality: stainless steel 304 (1.4301)
Maximum operating pressure: 15 bar
Outlet flow (maximum): 2.6 m³/h
Maximum sand content: 50 g/m³
Minimum drill hole diameter: 76 mm
Rated operating mode: S1
Volume flow (BEP): 2 m³/h
Pressure at volumetric flow (BEP): 862.76 kPa
Motor speed control: built-in
Motor control type: stepless
