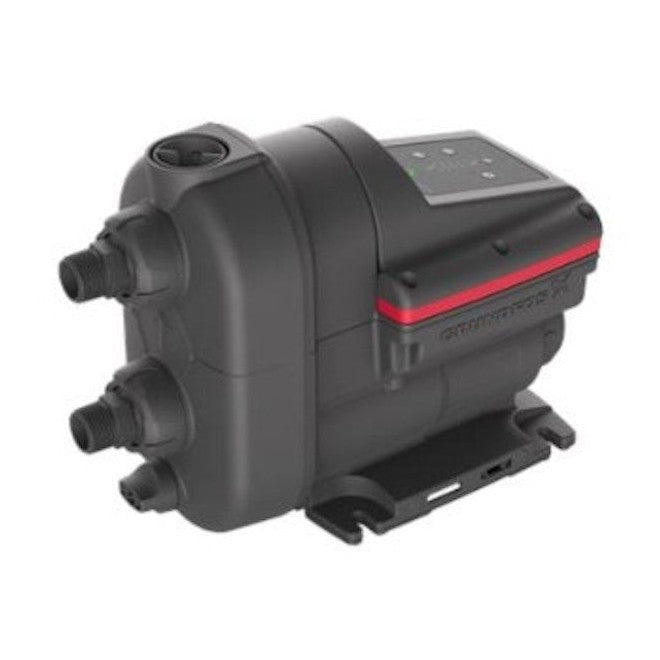

Water dispenser Grundfos Scala2 3-45 200-240V 50/60 Hz [4732548]

€698,90 EUR

Brand: Grundfos
Product number: LVI- 4732548
Delivery time: approx. 1-5 business days.
Shipping €9.90 or
Free pickup, no hidden costs

More information:

The Grundfos SCALA2 water pump is intended for water pumping and pressure boosting in detached houses, holiday homes, farms or greenhouses. SCALA2 is ideal for pressure boosting in detached houses. Thanks to its adjustable constant pressure feature, SCALA2 is the best choice for locations where several water points are in use at the same time. This means that the shower will not run out of water, even if someone flushes the toilet or the washing machine happens to take water at the same time. SCALA2 can produce a constant water pressure for up to 8 water points on 3 floors. Thanks to its self-priming, SCALA2 can lift water from a well up to 8 meters deep. SCALA2 is extremely quiet. In typical use, its sound level is only 47 dB(A), which is equivalent to the sound of a modern dishwasher. In addition, it is so small that it can be installed easily in a kitchen cabinet, for example.

Product benefits
- Quiet – sound level like a dishwasher
- Intelligent control – adjustable constant pressure
- Water-cooled permanent magnet motor
- Dry-running protection
- Clear and simple control panel
- Easy emptying and venting
- All-in-one solution – easy to install

Product number

4732548
Supplier product number:

93013252
EAN code:

5715122954975
Material class

P47100

Specifications

Connection type: conical external pipe thread
Number of pumps: 1
Width : 193mm
Height : 302mm
Insulation class according to IEC: F
Suitable for tap water: yes
Length : 403mm
Nominal diameter, all connections: 1" (25)
Maximum ambient temperature: 55 °C
Motor speed control: built-in
Suction installation: yes
Head at nominal flow: 264.71 kPa
Rated current: 2.8 A
Volume flow (BEP): 3 m³/h
Rotational speed: 4890 rpm
Product pressure class: PN 10
Flange pressure class: PN 10
Suitable for sprinkler/irrigation: yes
Pump shell material: fiber-reinforced plastic
With bypass pipe: no
Control: automatic
Pump shell material quality: other
Accessory material: fiber-reinforced plastic
Inlet connection: conical external pipe thread
Outlet connection: conical external pipe thread
Nominal diameter of inlet side: 1" (25)
Nominal diameter of the outlet side: 1" (25)
Inlet standard: ISO 7-1 / EN 10226-1
Output side standard: ISO 7-1 / EN 10226-1
Number of stages: 1
Motor power (P2): 0.45 kW
Electrical connection: connection cable with plug
Frequency: 50/60 Hz
Motor input power (P1): 0.55 kW
Interface PT100 / PT1000 / PTC: no
Interface PWM (Pulse Width Modulation): no
Pulse counter interface: no
Interface signal 0-10 V / 2-10 V: no
Interface signal 0-20 mA / 4-20 mA: no
Communication: none
Suitable for rainwater: yes
Cable length: 1.5 m
Tank material: other
Impeller material: polypropylene
Tank material quality: other
Impeller material quality: other
Maximum operating pressure: 10 bar
Outlet flow (maximum): 4.6 m³/h
Static maximum height: 45 m
RS-232 interface: no
RS-485 interface: no
Medium temperature (continuous): 0-45 °C
Rated voltage: 200-240 V
Operating temperature: 0-55 °C
Potential-free main switch: no
Pump protection level (IP): IPX4
Radio standard 5G: no
WLAN 802.11 standard: no
Cabinet IP class: other
Supports BACnet IP protocol: no
Supports BACnet MS/TP protocol: no
Supports CAN/CANOpen protocol: no
Supports Ethernet/IP protocol: no
Supports KNX protocol: no
Supports LIN Bus protocol: no
Supports LON/LONworks protocol: no
Supports Modbus RTU protocol: no
Supports Modbus TCP protocol: no
Supports PROFINET IO protocol: no
Pressure at volumetric flow (BEP): 264.71 kPa
Motor control type: stepless
Bluetooth standard: no
Supports PROFIBUS protocol: no
