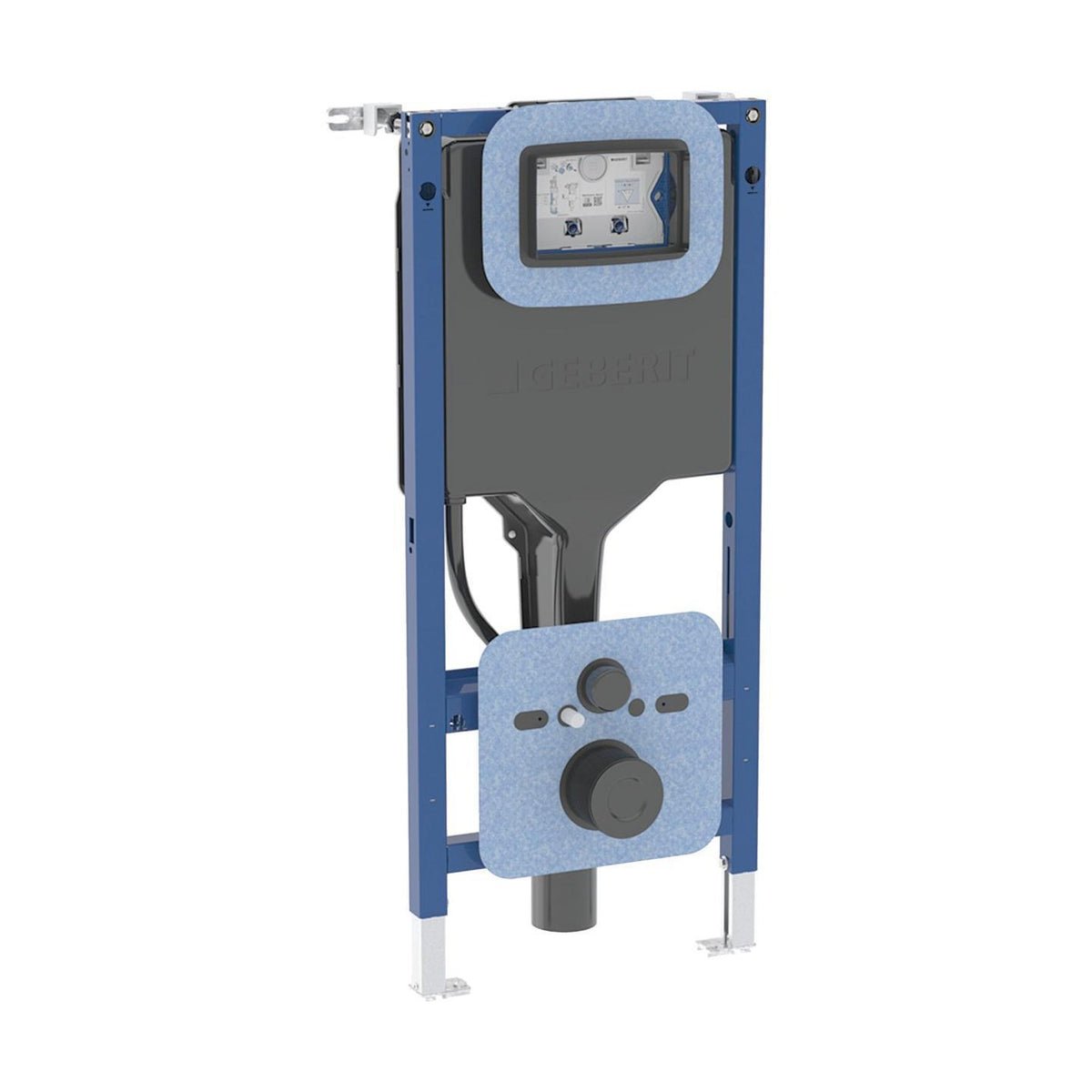

Mounting bracket for wall-mounted toilet Geberit Duofix Sigma Sawa 112CM PE-X [5757013]

~~€448,90 EUR~~ €399,90 EUR Save 10%

Brand: Geberit
Product number: LVI- 5757013
Delivery time: approx. 1-5 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs

Geberit Duofix Sawa – Safe and efficient wall-mounted toilet installation element

Geberit Duofix Sawa is an innovative wall-mounted toilet installation element designed specifically with Finnish building requirements and habits in mind. This product offers a modern and safe solution for bathrooms where wall-mounted toilets are increasingly popular due to their elegance and ease of maintenance.

Key features:

•Seamless safety casing: The seamless safety casing around the flushing tank and flushing pipe allows installation behind the waterproofing without a separate leak detection hole or ventilation of the structure. Two penetrations are included in the delivery, with which all necessary penetrations can be sealed with the waterproofing.

•Built-in leak detection: The leak detection is integrated into the safety housing of the flushing cistern, which prevents hidden leaks in the structure, ensures immediate leak detection and prevents damage caused by installation errors. The drain connection is also protected by leak detection.

•Easy installation: Duofix Sawa can be installed between partition posts using the integrated side brackets or it can be encased in front of the wall. Upper wall brackets are included in the delivery and lower wall brackets (LVI 5756657) are available as an accessory if floor mounting is not possible. Water connection from the left, right or top and the package includes PE-X connectors 15/16 mm and PE-X conduit adapter for 25/28 mm conduits.

•Optimized flushing technology: Multiple adjustment options allow you to optimize the toilet's flush volume and performance to suit different toilet seats.

Advantages:

•Safety: Fully enclosed solution prevents hidden leaks and allows installation behind a waterproofing layer. Flush tank maintenance is conveniently done via a flush button.

•Cost-effectiveness: Reduces labor and material costs as no additional waterproofing and tiling work is required.

•Compatibility: Suitable for Geberit Sigma flush plates and the Geberit Duofix partition system, which facilitates the implementation of fast and robust partition structures in both new construction and renovation projects. Sawa is also compatible with electronic flush plates and Geberit AquaClean washdown toilets.

Geberit Duofix Sawa brings Finnish bathrooms into the present day safely and efficiently, offering modern comfort and a stylish look.

Product number

5757013
Supplier product number:

111.924.00.1
EAN code:

4064746035364
Material class

P57751

Specifications

Water connection: external thread
Width : 500mm
Depth: 125 mm
Spacer under the tank: no
Height: 1120 mm
Adjustable width: no
Adjustable rinse water volume: no
Adjustable toilet seat height: no
Adjustable depth: no
Adjustable height: yes
Flushing tank quality class: PE
Suitable for shelf use: no
Suitable for electric use: yes
Suitable for front use: yes
Suitable for use with compressed air: yes
Flushing tank material: plastic
With shut-off valve: no
Includes toilet seat mounting materials: yes
Includes element mounting materials: yes
Bracket suitable for floor installation: yes
With flushing pipe and drain connection: yes
Includes impact sound insulation kit: no
Bracket suitable for low wall mounting: no
With drain arc: yes
Bracket suitable for high wall mounting: yes
Minimum shelf height: 1120 mm
Water connection size: 1/2"
The frame is suitable for a toilet with a 60cm partition: no
Rinsing method: other
Load capacity = 400 kg (EN 997): no
Anti-condensation insulation: yes
Manually operated: yes
Number of tap connections: 1
Battery operated: no
Suitable for shower toilet: yes
Suitable for plasterboard: yes
Suitable for solid walls: no
Electrical connection: yes
Toilet mounting center distance: 18 cm and 23 cm
Suitable for sanitary wall systems: yes
Remotely programmable: no
Suitable for infrared use: yes
Suitable for radar use: yes
Suitable for throttling the flushing flow: yes
With building operation and maintenance system connection: no
Fan connection: no
With delayed filling process: no
Maintenance opening: yes
With flush angle: yes
Flushing pipe outer diameter: 45 mm
Outer pipe diameter drainage: 90 mm
